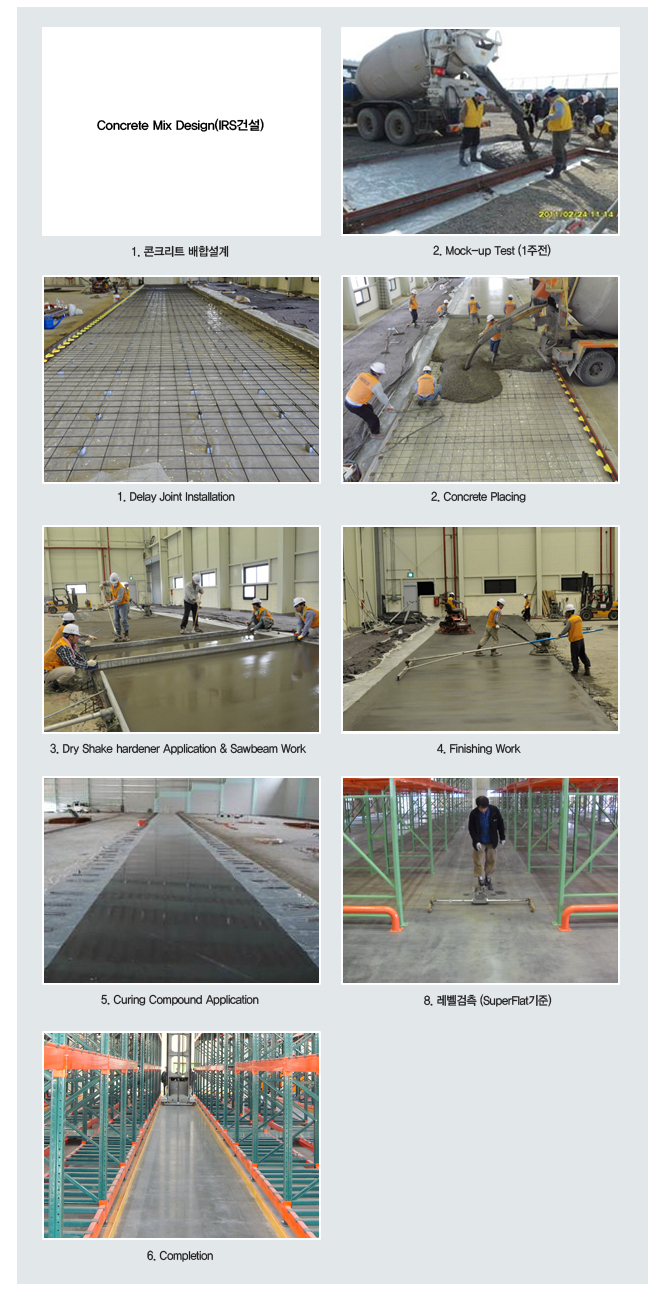

Superflat Floor is applied to Warehouse that uses three-way forklift upon the installation of high rack. As construction requires accuracy, it is necessary to have experience and understanding of Warehouse equipment such as high rack and forklift. Our company adheres to the standards of United Kingdom (BS), Germany (DIN) and United States(ACI) through technological cooperation and Monofloor (United Kingdom), a global Superflat flooring CM company for requirement of high levels of technical experience and supervision.
|
· An equipment with vertical and horizontal mobility such as “three-way forklift” will be used for the management of load with height as with the High rack distrbution depot. If the floor has no flatness and levelness, it may lead to safety issues for the vehicle operator who operates the vehicle at a height of 8-13m, and also lead to shaking of mast, which eventually disallows the operation of forklift.
· The maintenance cost of the forklift will be increased with its internal electronic device malfunction, abrasion resistance of the wheels, and when there is a problem with the connection part to the three-way forklift.
· The Floor Levelness must have no issue at all in order for the Warehouse’s target quantity of materials transported to be met with the forklift operating at its maximum capacity.

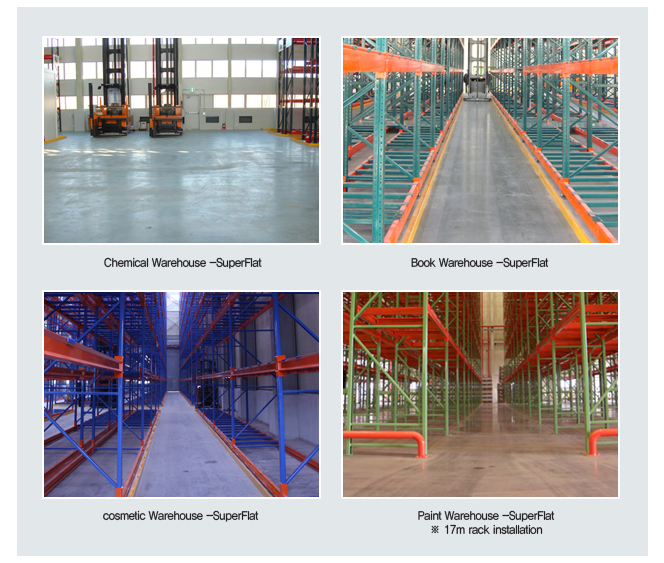

※ Our company construction site: Maximum 17m high rack installation – Floor Flatness SuperFlat Standard Passed (UK Technical Report No., 34rd Edition, 4.4)
|
 |
1. Defined Movement Standard
Defined Movement Area is regulated to operate in the fixed pathway or zone of VNA device(three-way forklift).
|
 |
2. Flatness & Levelness : BS Technical Report No.34
|
Floor classification
|
MHE lift height
|
Property Ⅰ
|
Property Ⅱ
|
Property Ⅲ
|
ACI
|
Wheel track
|
Wheel track
|
F min numbers
|
| up to 1.5 m |
over 1.5 m |
|
| 95% |
100% |
95% |
100% |
95% |
100% |
95% |
100% |
|
|
Superflat (SF)
|
Over 13m |
0.75 |
1 |
1 |
1.5 |
1.5 |
2.5 |
2 |
3 |
Up to 8m
|
|
Category 1
|
8-13m |
1.5 |
2.5 |
2.5 |
3.5 |
2.5 |
3.5 |
3 |
4.5 |
F min 75
|
|
Category 2
|
Up to 8m |
2.5 |
4 |
3.25 |
5 |
3.5 |
5 |
4 |
6 |
F min 50
|
|
|
|
|
|
